Sysolution Asynchronous Sending Card Y70 Lora Mode 1.3 million pixels1080p HDMI output

  • 1
  • 2
  • 3

Brand Name : SYSOLUTON

Model Number : Y70

Certification : FCC、CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 30 units per Month

Packaging Details : carton box

Delivery Time : 2-3 work days

Payment Terms : T/T, Paypal

Input Voltage(V) : DC5-24V

Working Temperature : -30℃-+75℃

Work Humidity : 0%-80% No condensation

Store Temperature : -40℃ - 80℃ Recommend 5-35℃

Size (MM) : 188(Length) *100.73(Wide) *33.4(Height)

Weight(G) : 1300g

Contact Now

Sysolution Asynchronous Sending Card Y70

Product Introduction:

Sysolution Y70 is a highly integrated and high- performance quad-core Cortex-A17 core controller, can run up to 1.8 GHZ, with 2G memory and 16 GB EMMC high-speed flash memory. It also supports synchronous HDMI output signals. It is more suitable for commercial display fields,such as mirror screen, advertising machine, lamp pole screen and so on.

With the developing of LED display industry, need to support HDMI output monitoring in some occasions, as well as wired network, 4G, WiFi wireless transmission, remote cluster control, and need to be able to control through mobile phones.

Product Pictures:

Y70 Product pictures

Sysolution Asynchronous Sending Card Y70 Lora Mode 1.3 million pixels1080p HDMI output

Sysolution Asynchronous Sending Card Y70 Lora Mode 1.3 million pixels1080p HDMI output

Features:

  1. Integrated power amplifier left and right channels.
  2. Support HDMI output.
  3. Support Lora module to realize multi-screen wireless synchronous playback mechanism.
  4. On-board automatic brightness sensor interface, directly plug in the brightness probe then can be used to automatically adjust the brightness.
  5. On- board WiFi module, supporting AP mode and Station mode.
  6. Built-in Web Sever, support local Web page production, support computer, Iphone, android phone, tablet standalone version of the program editing, cross-platform system is fully compatible.
  7. Video hard decoding, support 1080p, support mainstream video, image format and text editing.
  8. Support 1.3 million pixels double network ports , the widest 1920 pixels, the highest 1080 pixels.
  9. Support full color static to 32 sweep module, conventional chip high refresh, high brightness, high gray level.
  10. Fully support all chip manufactures driver chip.
  11. Industrial-grade on board flash.
  12. support USB camera.
  13. Support the storage parameters of the receiving card ( for use with the 8th and 9th generation receiving cards)
  14. Bundled software : LedOK Express.

Interface Parameter:

Sysolution Asynchronous Sending Card Y70 Lora Mode 1.3 million pixels1080p HDMI output

Product Parameter:

Main Hardware Indicators
CPU Rui core micro RK3288 Four core 1.8GHz Cortex-A17
GPU Four core GPU Mail-T764
Memory 2G
Memory storage EMMC 16G
Built-in ROM 2KB EEPROM
Decoding resolution 3840*2160 THE maximum support
On load Pix 1280 x 720(1920 x 1080)
Operation System Android 7.1
Play mode Support loop, timing, insert and other playback modes.
Network support Ethernet, support WiFi/bluetooth 4.0, wireless peripheral expansion.
Video display Support MP4(AVC/H.264,DIVX,XVID)Format
USB2.0 interface 1个USB HOST,1个USB OTG
Serial port IIC / TTL / 485
GPS External GPS(optional )
WiFi,BT Built in WiFi,BT4.0(Optional )
4G Built-in 4G module communication ( optional)
Ethernet 10M/100M/1000M Adaptive Ethernet
HDMI output Support
audio output 3.5mm audio port
Power amplifier output 12 V power supply 4Ω BTL syndromes of Maximum power load conditions for2*33W,the smaller the power voltage,the smaller the horn
Configuration Software LedOK Express

Technician Parameter:

Work Parameter
Input Voltage(V) DC5~24V
Work Temperature(°C) -30~+75℃
Work Humidity(%) 0%~80% No condensation
Store Temperature(℃) -40~80℃ Recommend 5~35℃
Size(MM) 188(Length)x100.73(Wide )x33.4(Height )
Weight (G) 1300g

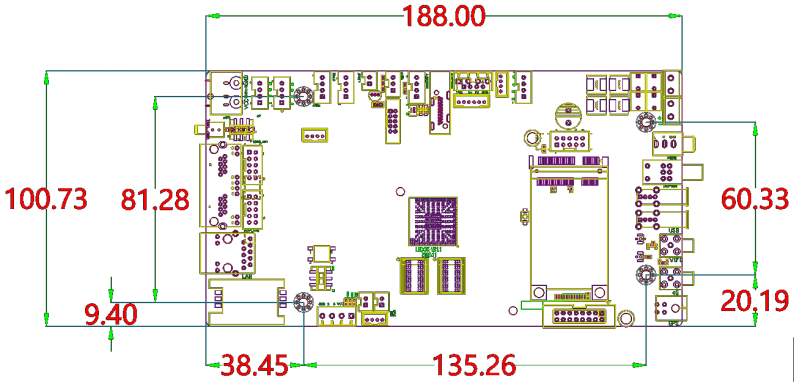

Dimension: Unit: mm

Y70 Dimensional drawing of motherboard

Sysolution Asynchronous Sending Card Y70 Lora Mode 1.3 million pixels1080p HDMI output

Accessories:

Optional Accessories Fitting Function
Multi-function Card R56 Remote power off 2 way + 6 ways power detection+ open/close door (require sensor RD1)+ smoke detection (require sensor RM1)
Multi-function Card RS5 Remote power off 2 way + 6 ways power detection+ open/close door (require sensor)+ smoke detection (require sensor)+sync mode Lora
Luminance Sensor RL2
Temperature Sensor RT1
Humidity Sensor RH1
Eight elements environmental sensor R68

Notes:

  1. It is strictly to prohibited to disassemble and assemble the product.
  2. It is strictly prohibited to plug and unplug the antenna on line.
